Colors and theming in vizzy

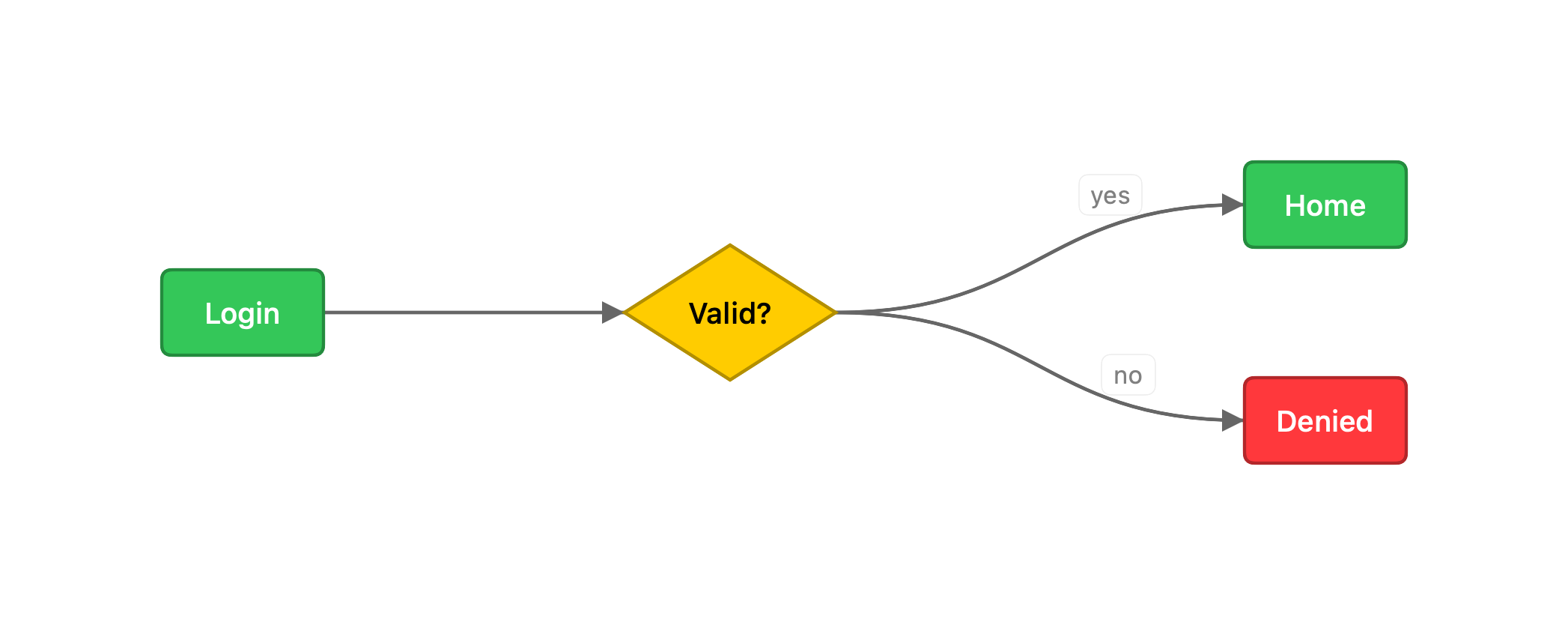

Styling is optional — diagrams render cleanly with none. When you do tint a node, prefer a standard color name over a raw #hex — names stay on-theme and let a single vizzy.config retheme the whole repo at once. Never invent a custom token.

The palette

red   orange  yellow  green  mint   teal   cyan
blue  indigo  purple  pink   brown  gray   black  white

(plus primary, secondary, and accent). A raw #hex works anywhere a name does, but vizzy lint nudges you toward a name — if you need a specific shade, define it once in vizzy.config below and reference it by name.

Re-theming a whole repo

To restyle every diagram at once, drop an optional vizzy/vizzy.config that remaps what those names mean — the diagrams keep using plain names:

# vizzy/vizzy.config — optional palette overrides (name = #hex or color name)
red   = #E5484D
blue  = #0A84FF
green = #30A46C

Now every stroke:red / fill:red picks up the new red. Lines starting with # are comments; unknown or malformed lines are ignored. With no config file, the built-in palette is used.

Note

You never define $tokens in the diagrams themselves — diagrams reference standard names, and the config (if present) is the single place that remaps them.

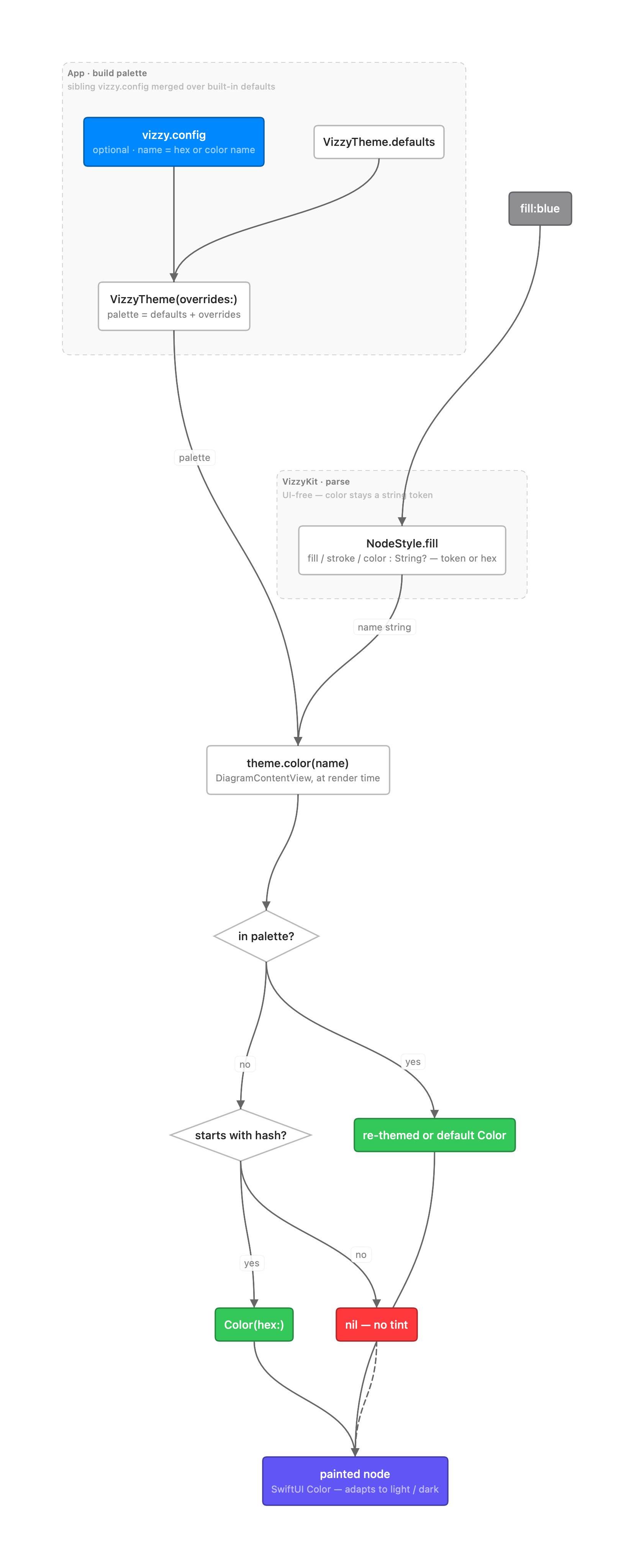

How a color name resolves

A color stays a plain name until the moment it’s drawn. VizzyKit parses the diagram and keeps fill / stroke / color as unresolved strings on each node; the app builds a palette by merging your vizzy.config over the built-in defaults, then resolves each name at render time. The order is config override → built-in default → raw #hex → none — and the final SwiftUI color adapts to light / dark on its own.

Assets

Images are entirely optional. You may reference files from vizzy/assets/, but no diagram needs them.

To go the other way — turning a diagram into an image for a README or web page — use the vizzy CLI, which renders each diagram to a PNG in vizzy/assets/.
